Y-type Pneumatic Angle Seat Valve
keyword：
Valve
Y-type Pneumatic Angle Seat Valve
Angle seat valve is common line switch in the automatic control system. It’s widely used in medicine, printing and dyeing, beer, food, chemical, water treatment, etc, has small volume, no water, no noise, sealing reliable performance characteristics such as low price.

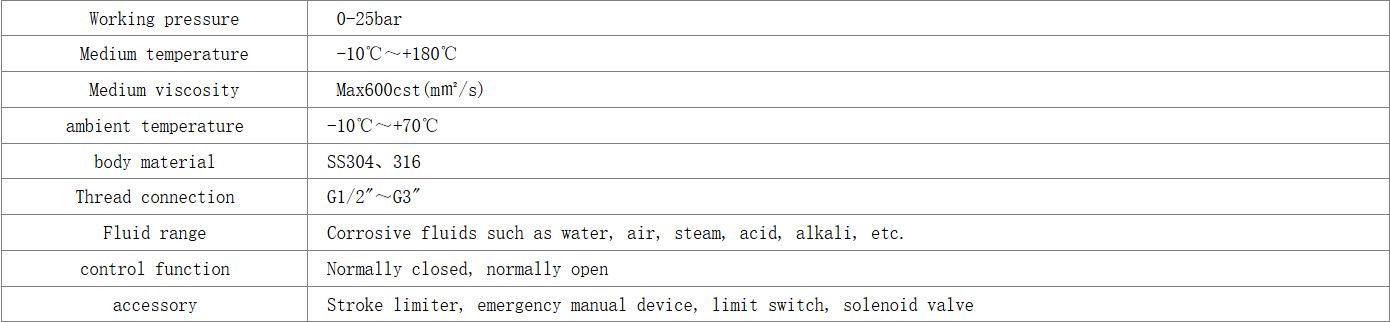

Products Specifications:
- Fixed piston unique seal, extension stem stroke, the valve cavity is more gentle, expand the circulation section of the valve chamber, increase the flow of 30%
- Large flow valve, more reasonable design of the valve cavity to reduce the fluid resistance, combined with a long stroke of the valve stem, flow increased by 30%, life expectancy of up to 200-700 million times
- Advanced pneumatic actuator, engineering plastic shell, low friction brass nickel plated piston, internal components of automatic lubrication, maintenance free, can be rotated 360 degrees, and the electromagnetic valve is connected to the NAMOR interface
- Long-life stem, to prolong the life of the stem are used stainless steel 316/ 316L stainless steel (Ares), and the wedge shaped Teflon (PTFE) seal stem position is corrected automatically and self lubrication and maintenance free < br >
- All steel parts are made of stainless steel materials, seals for food with silicone rubber or PTFE material conforms to food hygiene regulations.
Introduction:
- Angle seat valve to maintain the flow rate can save space. It uses a spring with a single action to protect the safety of the operation of the steering angle seat valve.
- Products made from stainless steel casting and Teflon, which can be used for most gases, liquids, steam and corrosive occasions. It carries a heat sink to protect the actuator. Ensure the valve has a long life span.

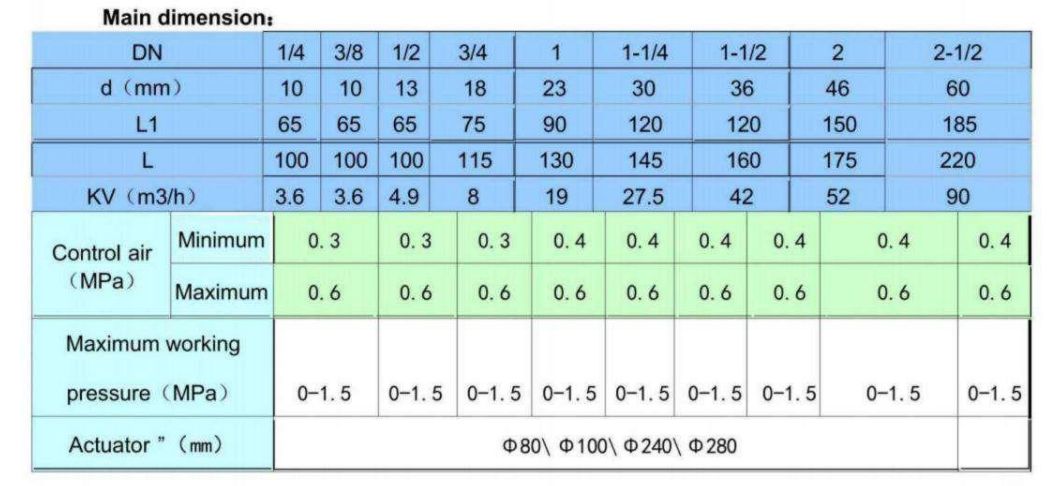

Principle and technical parameters: Single and double action
- Single action (pneumatic head is usually a hole); working principle; according to the spring reset to open and close the role, is divided into normally open and normally closed type.
- Double action (pneumatic head is usually two holes); working principle: to control the gas switch. (according to customer requirements, you can also choose to double acting and spring reset, more precise control).
Characteristic：
- With the valve open or closed position display.
- External pneumatic pilot, can increase the service life, maintenance free.
- Overflow and the slide from the regulator gland, can improve the sealing performance.
- Body angle seat structure, can achieve large flow (in particular, compared with the general cut-off valve), Compact fast response.
Installation and maintenance:
- Piping must be clean and free from contamination.
- According to the need to install, but the best to make the implementation of the agency. Pay attention to flow.
- To connect the valve attention to the pipeline, only in the user's special requirements to take down the implementation of the agency.
- Open or repair the angle valve before the first cut off the fluid and control the gas source and reduce the pressure in the pipeline system.
