Pneumatic Wafer Soft Sealing Butterfly Valve
keyword：
Valve
Pneumatic Wafer Soft Sealing Butterfly Valve
Soft sealing butterfly valve to the clamp of the diameter of the butterfly plate installed in pipeline direction. Soft seal butterfly valve, as a kind of used to realize pipeline system on-off and flow control components. Many fields, such as textile printing and dyeing, petrochemical, food, beverage, water treatment, air conditioning, pharmaceutical, paper making and so on will soon widely use this valve.

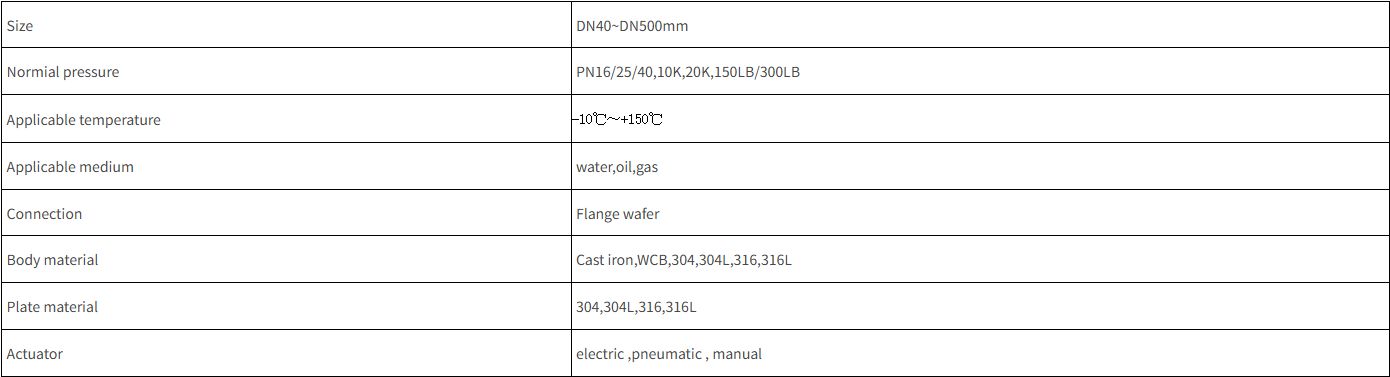

Products Specification:
The Structure of the Pneumatic Butterfly Valve:
Pneumatic butterfly valve consists of pneumatic actuator and butterfly valve. Pneumatic butterfly valve uses circular disc that rotates along valve stem to open or close. Pneumatic valve that realizes opening action is main used as block valve, it also can be designed to have adjustment function or be the section valve with regulating function. At present, butterfly valve is more and more used in pipeline that has low pressure and large-middle diameter .Pneumatic butterfly valve categories: stainless steel pneumatic butterfly valve, hard sealing pneumatic butterfly valve, soft sealing pneumatic butterfly valve, carbon steel material pneumatic butterfly valve.
The Working Principle of Pneumatic Butterfly Valve:
Butterfly valve has simple structure, small volume, light weight, only a few parts. And only need to rotate 90 ° can it rapidly open or close, operation is simple,at the same time, the electric valve has good fluid control characteristics. When butterfly valve is in fully open position, the butterfly plate thickness is the only resistance for medium flowing through the body, thus pressure drop produced by the valve is small, so it has good flow control characteristics. Butterfly valves have elastic packing and metal hardware sealing two types. Elastic sealing valve, it’s sealing ring can be embedded in the body or attached to the butterfly plate peripheral. If butterfly valve is used for flow control, the main job is to choose size and type of valve rightly. Structure principle of butterfly valve is especially suitable for production of large diameter valves. Butterfly valve is widely used not only in the oil, gas, chemical industry, water treatment and other general industrial, but also in cooling water system of thermal power plants.
FAQ
Product After-Sales Service
We provide 1 year after-sales service for our products, and can extend the after-sales service period for a fee as needed. Please feel free to inquire in detail.
About Customized Product Production
We support customized production needs for various valve products, including OEM&ODM, provided that there is legal authorization. Please contact our sales manager on our website for more information.
About Our Factory
We have factories in Hunan, Zhejiang, Guangdong, and Shanghai in China, which can meet the production of various valves.
Product Production Cycle
We have a strong production team that schedules production based on the number of product orders and production processes. For standard products, we can generally complete production within 7-30 days and support expedited production.
About Logistics
We cooperate with powerful international logistics companies, whether it is air or sea freight, and we can apply for the best transportation price for you because we have rich experience in international logistics transportation.
