Cage Single-seat Control Valve
keyword：
Valve
Cage Single-seat Control Valve
Cage Single-seat Control Valve (Model TYP 300)
TYP300 single-seat regulating valve is a kind of high-performance regulating valve. It used in liquid pressure difference of more than 3 Mpa high-pressure difference situations. Strong orientation, valve core and the sleeve can prevent flash and cavitation in liquid. The body in ans-shaped streamline channel, small pressure drop loss, large flow, wide adjustable range. TYP300 single-seat regulating valve with more spring loaded diaphragm actuator, electric actuator, compact structure, large output force. Products comply with GB/T4213-2008, DIN and ANSI standards.
Products Specifications:
- Type: Through single-seat
Size: DN15-500mm
- Nominal pressure: ANSl125, 150, 300, 600, JIS10, 16, 20, 30, 40K, PN1.6, 4.0, 6.4Mpa
- Connection: Flange, FF, RF, RJ and LG; According JIS B2201 or ANSI B16.5 and JB/T79.1convex, JB/T79.2 PN4.0Mpa, welding, SW.

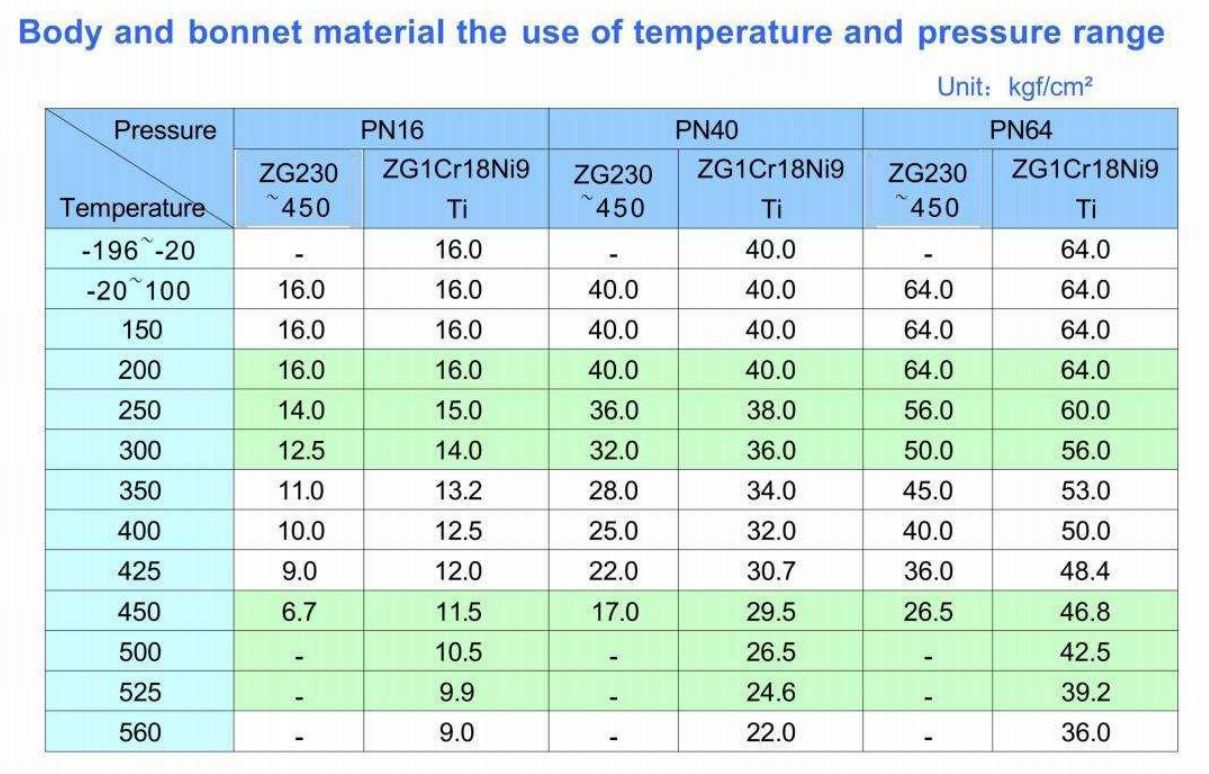

- Bonnet: Normal temperature type: -17~230; Elongation type: -45~-170; welding type: -196~-100.
- Stuffing: V type teflon, containing PTFE asbestos stuffing, Asbestos woven stuffing, graphite.

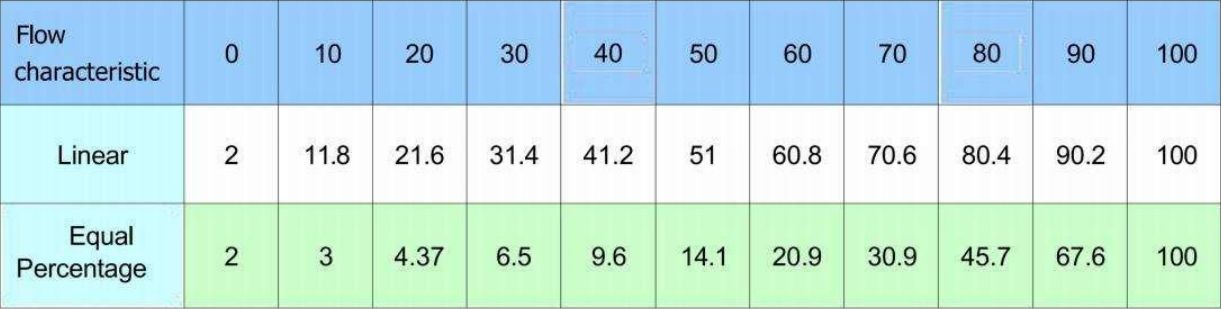

- Flow characteristic: Equal percentage and linear characteristic.
Actuator
- Type: multi-spring diaphragm, piston actuator, electric.
- Diaphragm material: Ethylene propylene rubber nylon.
- Gas supply pressure: 0.02~0.45Mpa
- Temperature of the environment: -30~+70
- Operating methods: FU=normally open type (OPG), FO=normally closed type(OPO)
- The attachment: locator, The hand-wheel institutions, Valve position transmitter.
Performance:
- Leakage: accord with a standard ANSI B16.104-1976 grade VI, less than 0.01% of rated Cv
- Back to the poor: small all over 1% of stroke (with locator), small all over 3% of stroke (without locator.
- The linear: small all over 1% of stroke (with locator), small all over 5% of stroke (without locator)
- Adjustable ratio: 50:1, 30:1.
